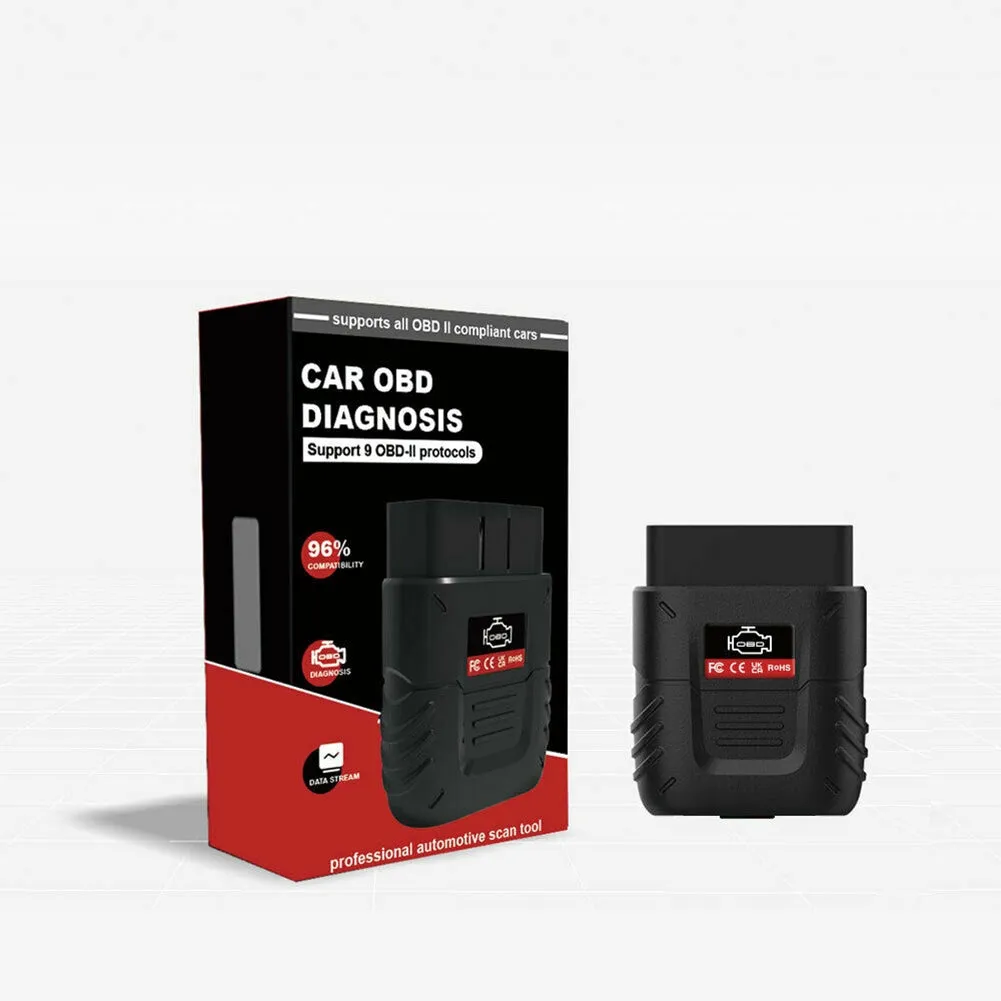

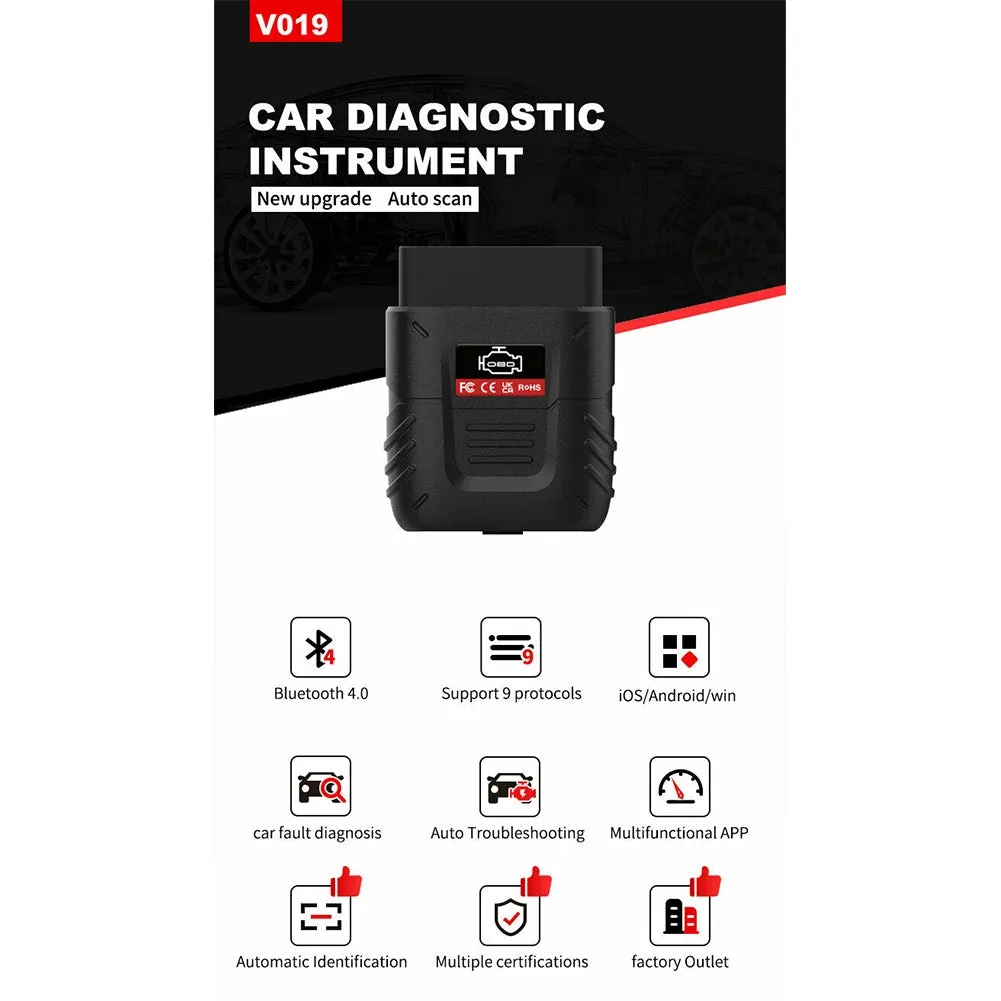

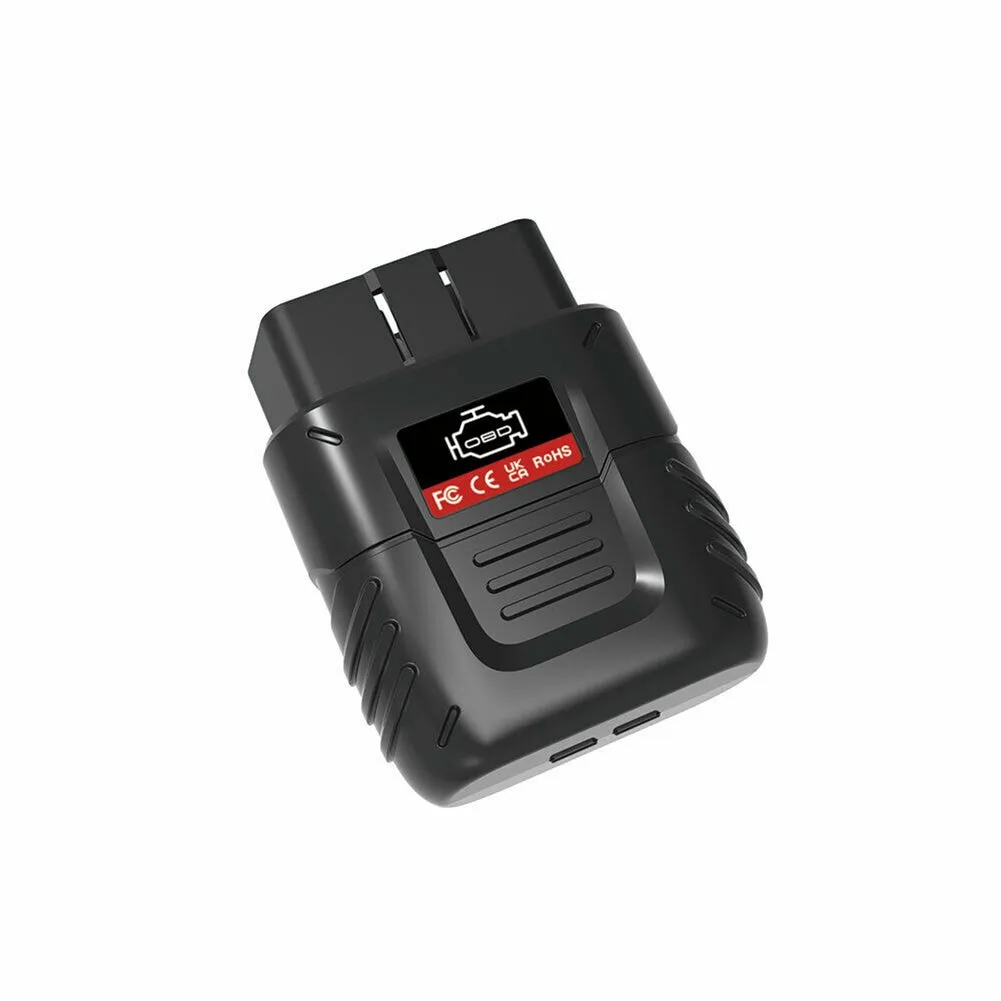

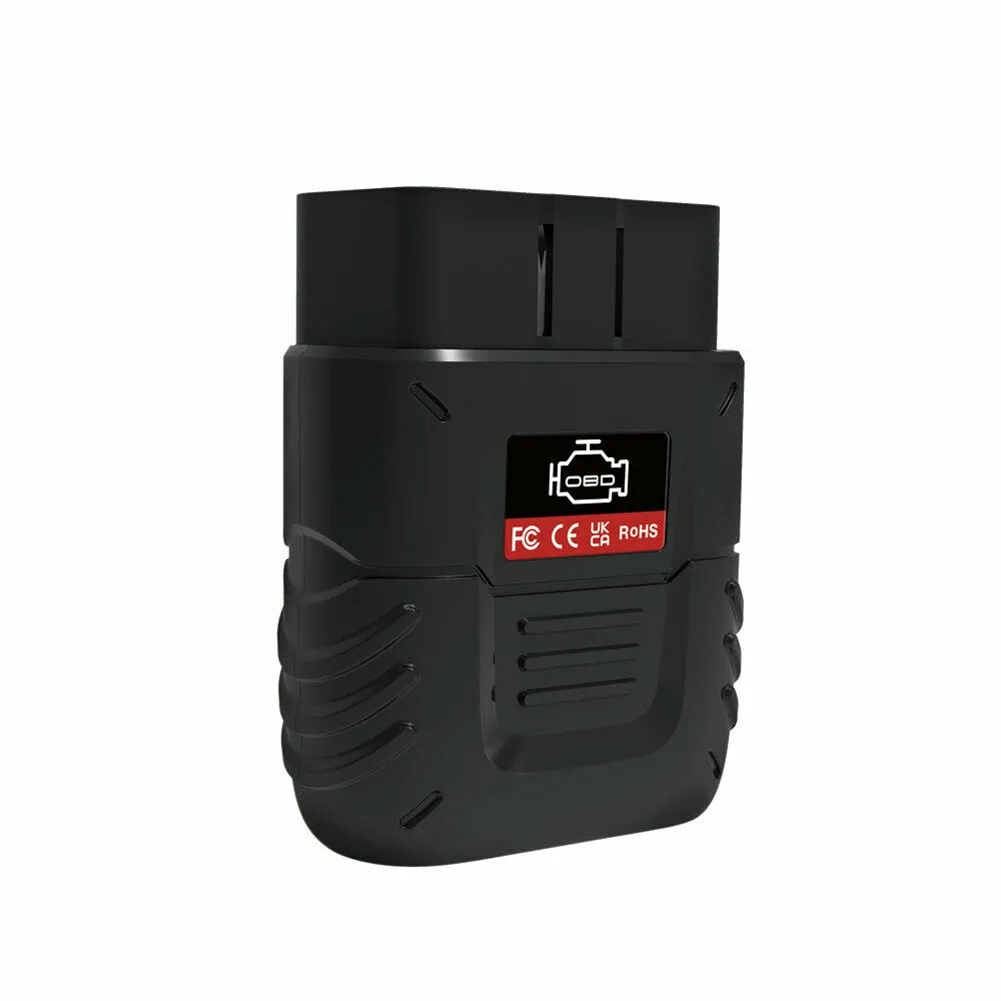

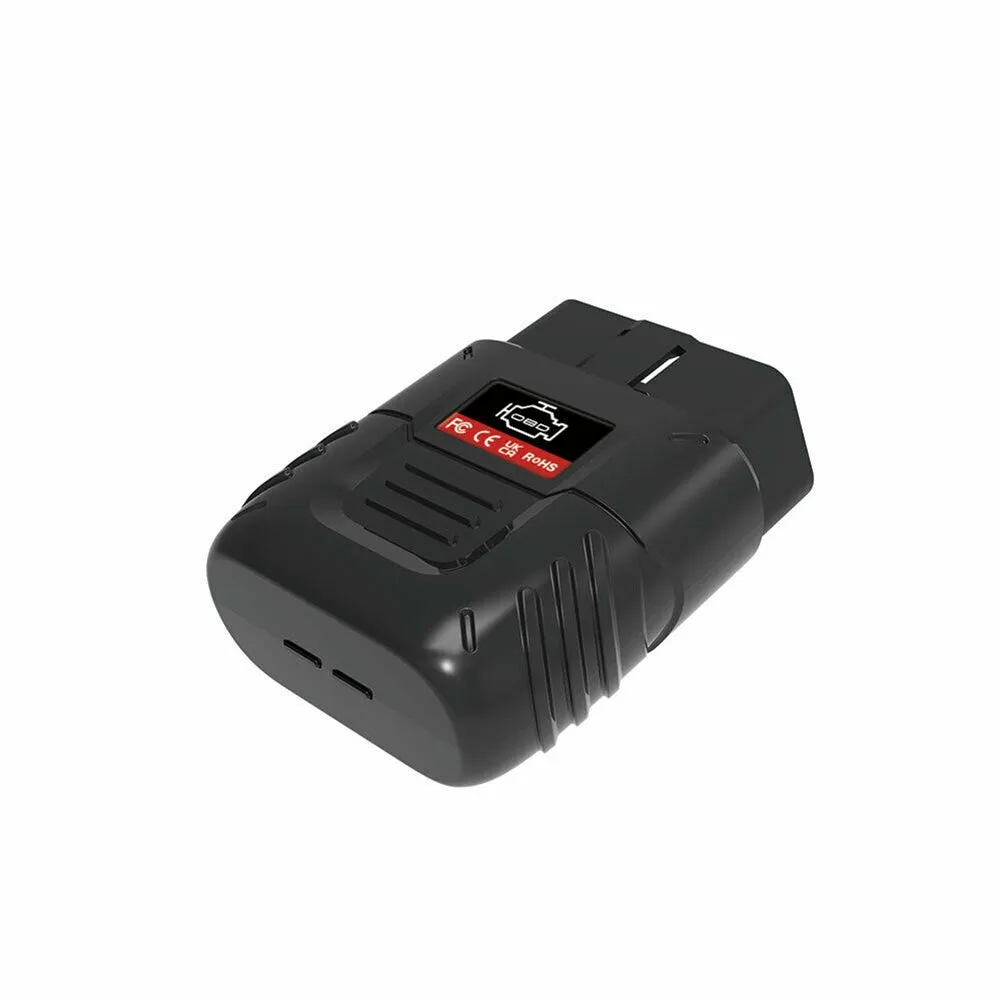

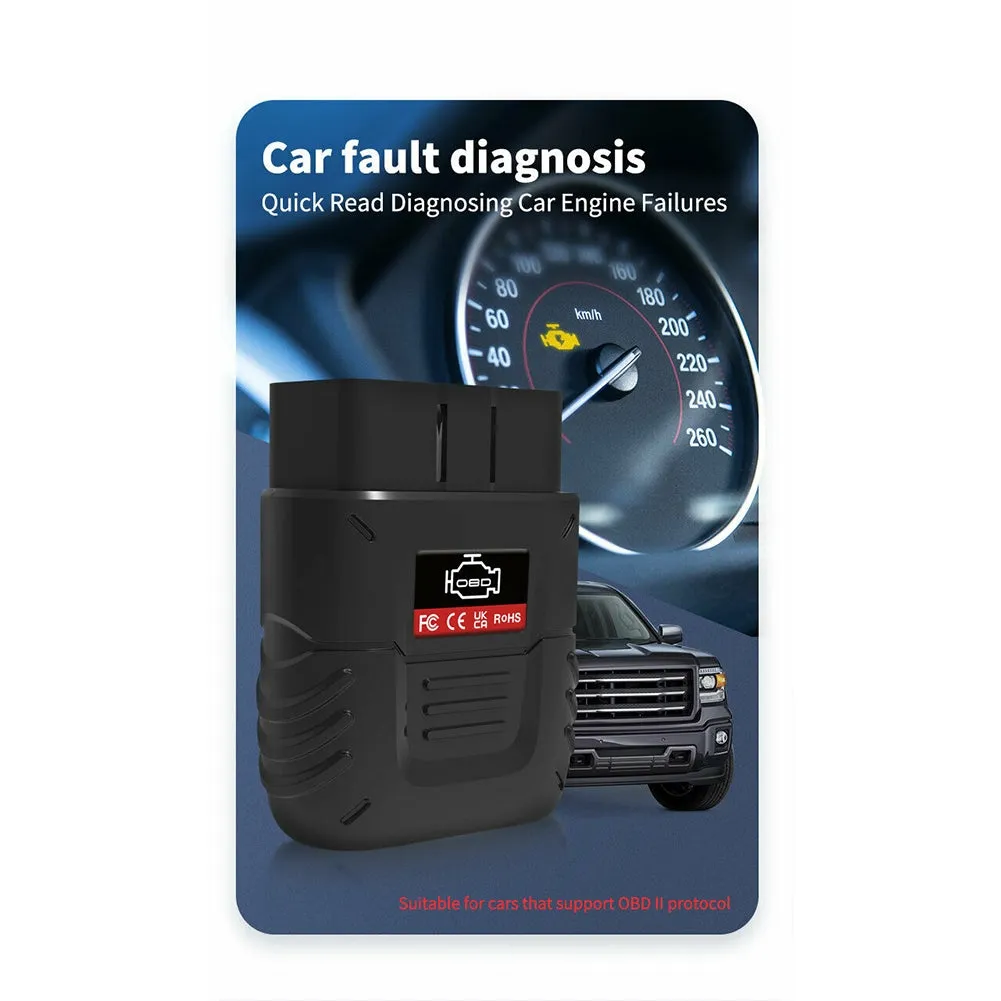

Name: Car Scanner
Communication method: Bluetooth-compatible 4.0
Main control chip: mm32l073pf wafer
Software platform: support compatible for Android/Windows/IOS
Working voltage: 12V
Working current: 43mA
Working temperature: - 30℃～70℃
Working humidity: less than 60%
Product size: 59.5x46x22mm
Data graph display and recording
Freeze frame data
Continuous and discontinuous oxygen test results

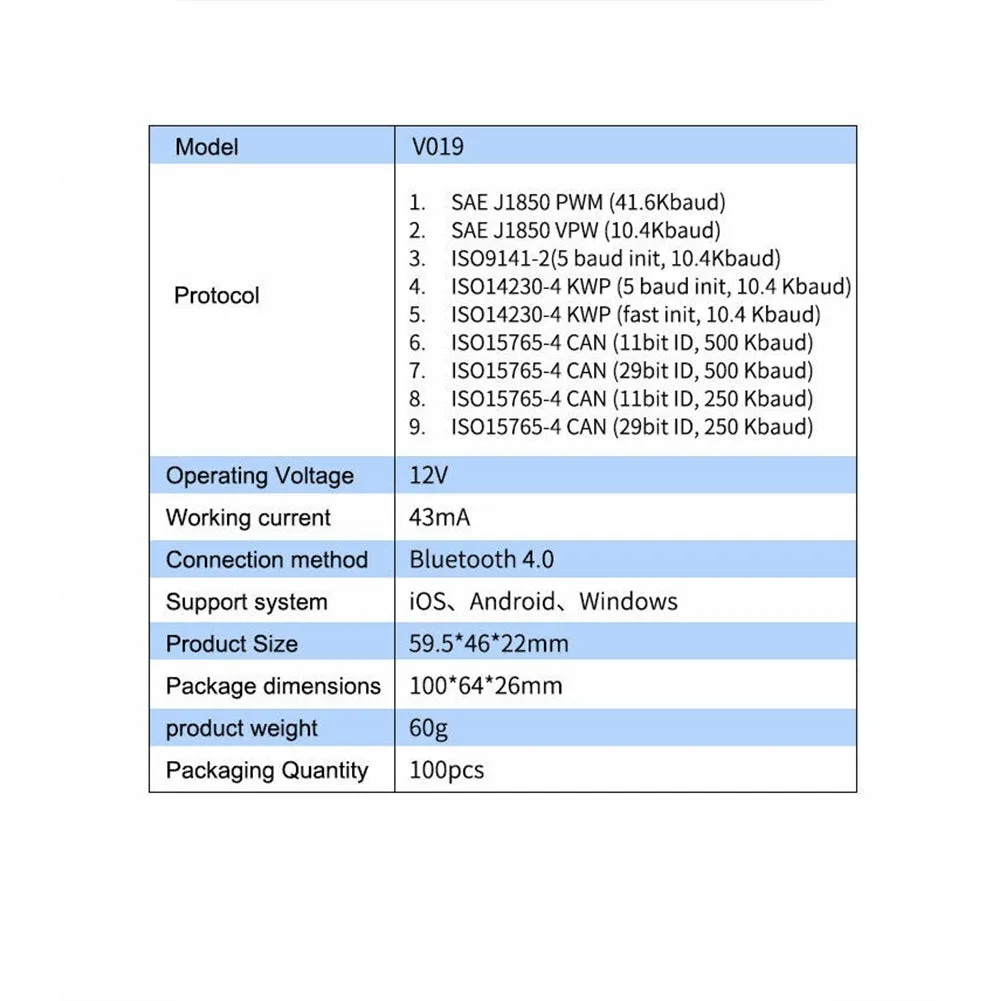

Protocol support:
Protocols supported by mini OBDII:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud initialization, 10.4Kbaud)
 4. ISO14230-4 KWP (5 baud initialization, 10.4 Kbaud)
 5. ISO14230-4 KWP (fast initialization, 10.4 Kbaud)
 6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
 7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
 8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
 9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

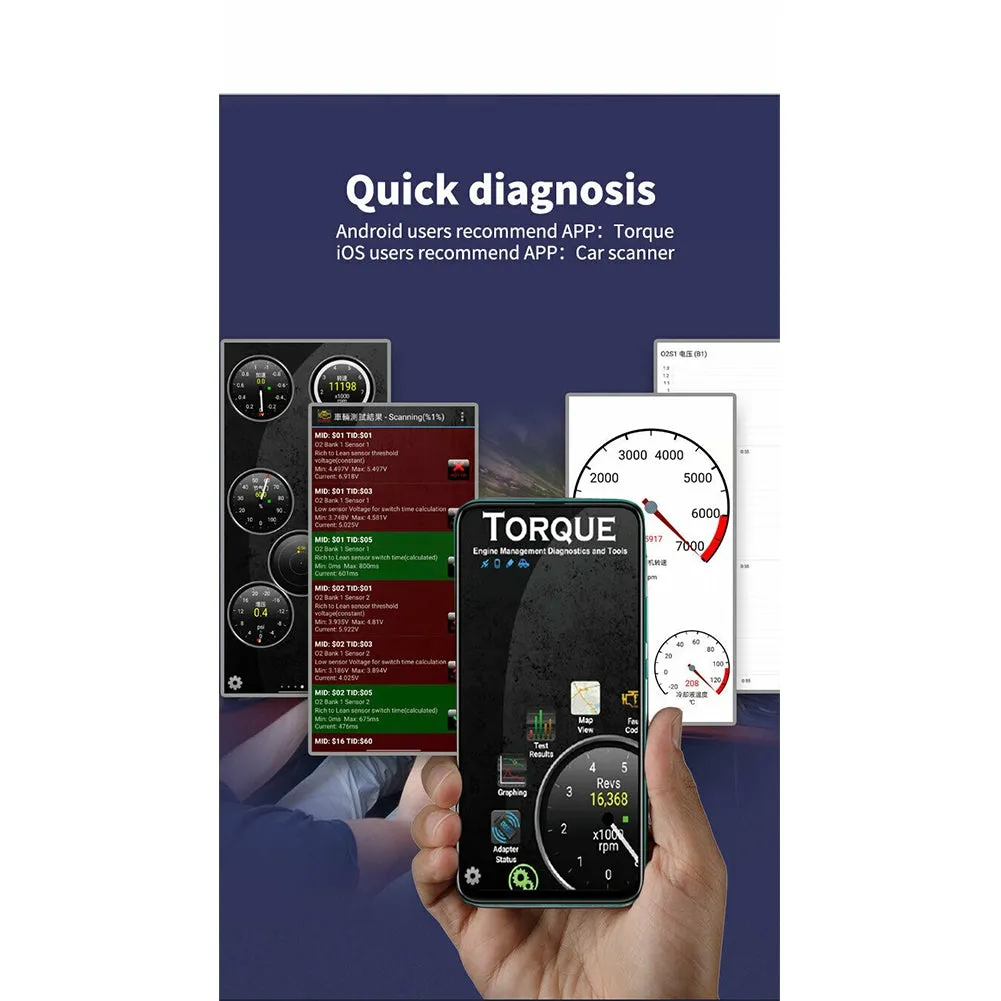

Software Platform:
1. Compatible software
Window version: scanmaster elm, scantool Net, pcmscan, etc.;
Compatible for Android version: torque, dashcommand, OBD car doctor, car doctor, mini OBDII, Eobd, etc.;
Compatible for IOS version: car doctor, mini OBDII
Compatible for Saipan version: obdscope.
2. Compatible Platforms
Software support platform: Compatible for Windows XP, Windows 7/8, Android, Symbian and other systems.
Packing list:
1 x Host
1 x Instruction Manual
