Product Details ＋

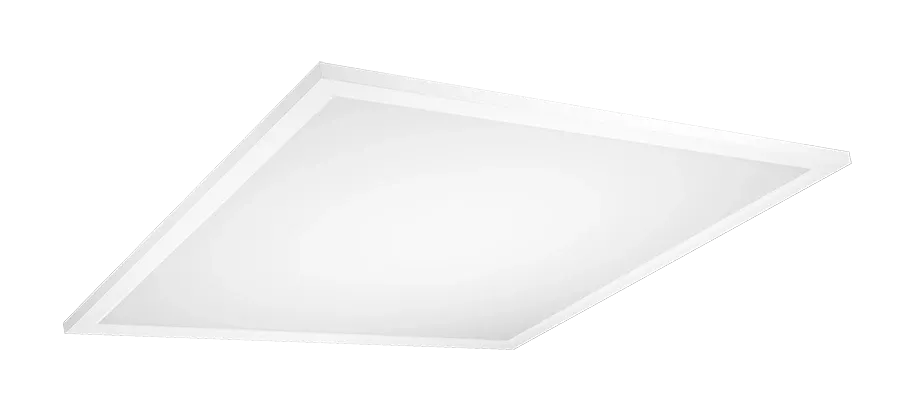

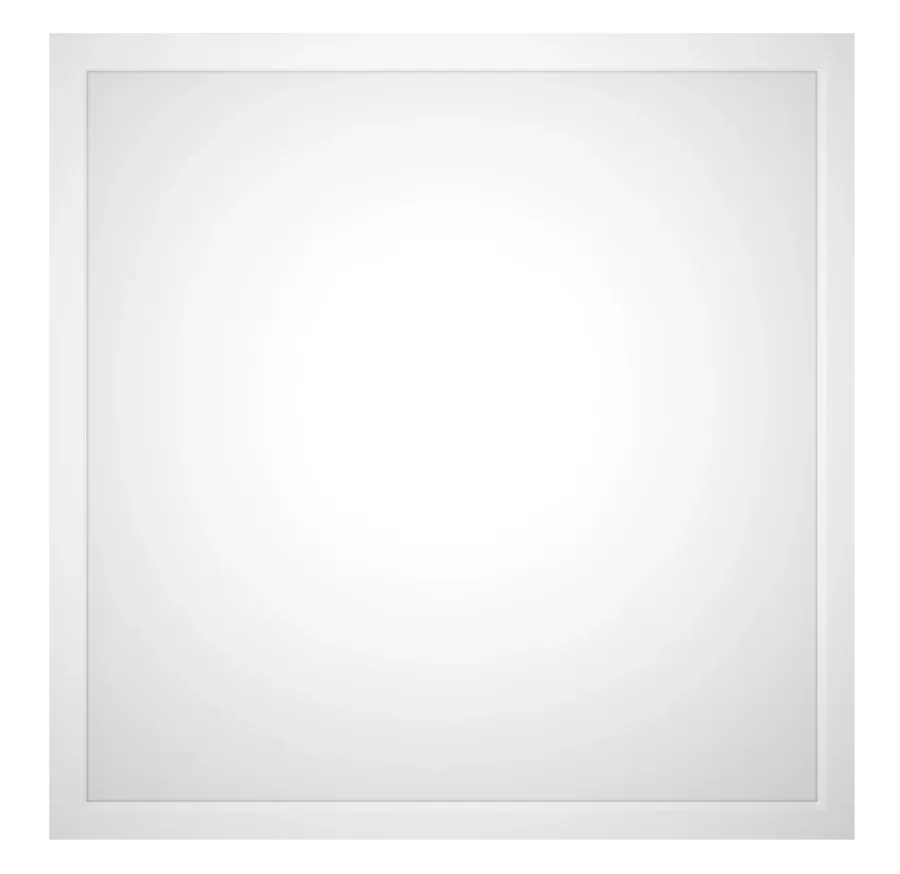

2X2 Backlit Flat panel Selectable CCT

Please note these items can only be ordered in increments of 4

Wattage	20/30/40W
Lumen	2279-4328 lm
Color Temp.	3500K-5000K
Efficacy	118.8-134.1 lm/W
Voltage	120-277V
Dimming	0-10V
CRI	81-84 CRI
L70 Lifespan	50,000 Hours
Finish	Formulated for high durability and long-lasting color
Lens	Frosted polystyrene
Mounting	Recessed into T-grid ceiling. Surface and recessed mounting kits available for drywall ceilings.
Housing	Plastic frame & galvanized steel back housing

Compliance

Safety Listing	UL Listed Suitable for damp locations
Environment/Fixture Rating	Damp Location
IC Rated	Suitable for direct contact with insulation
DLC Listed	This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: S-4OP1IZ

Electrical

Driver	20W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.17A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A 30W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A 40W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.34A, 208V: 0.20A, 240V: 0.17A, 277V: 0.15A
Dimming driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD	5.44% at 120V, 8.25% at 277V
Power Factor	99.7% at 120V, 95% at 277V
Dimming	0-10V Dimming
